Hindenburg Statistics

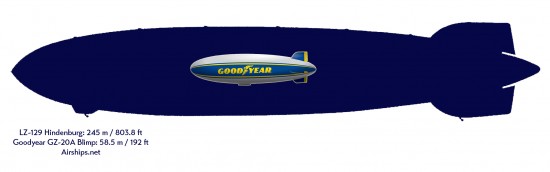

Size comparison between LZ-129 Hindenburg and Boeing 747

Size comparison between LZ-129 Hindenburg and Boeing 707

LZ-129 Hindenburg statistics:

  • Length: 803.8 feet
  • Diameter: 135.1 feet
  • Gas capacity: 7,062,000 cubic feet
  • Lift: 511,500 lbs
  • Cruising Speed: 125 km/h (76 MPH)
  • Maximum Speed: 135 km/h (84 MPH)
  • Main Powerplant: 4 Daimler-Benz 16-cylinder LOF 6 (DB 602) Diesels
  • Crew: 40 flight officers and men, 10-12 stewards and cooks
  • Passengers: 50 sleeping berths (1936); 72 sleeping berths (1937)
  • First flight: March 4, 1936
  • Final flight: Crashed, May 6, 1937

Additional specifications and technical details are available on the following pages of this website:

Relative sizes of LZ-11 Viktoria Luise, LZ-120 Bodensee, LZ-127 Graf Zeppelin. and LZ-129 Hindenburg

Relative sizes of LZ-11 Viktoria Luise, LZ-120 Bodensee, LZ-127 Graf Zeppelin. and LZ-129 Hindenburg

caprip

Hindenburg profile, showing major elements and numbering system for gas cells and frames. Drawing courtesy David Fowler. (click to enlarge)

Be Sociable, Share!
