USS Los Angeles ZR-3
USS Los Angeles. (click all photos to enlarge)
The USS Los Angeles — by far the most successful of the United States Navy’s rigid airships — was built in Germany by the Zeppelin Company. Designated ZR-3 (Zeppelin Rigid number 3) by the United States Navy, the ship was constructed as the LZ-126 (Luftschiff Zeppelin number 126; the 126th design produced by the Zeppelin Company.)
The Origins of the USS Los Angeles
The LZ-126 at its birthplace in Friedrichshafen
While the Los Angeles achieved its fame as an American naval vessel, the story of its construction is also the story of the rebirth of the German airship industry in the aftermath of World War I.
Appalled by Germany’s use of airships to bomb civilians during the war, the Allies were determined to destroy the German airship industry. Under the leadership of Hugo Eckener, the Zeppelin Company convinced the Allies to allow them to build a large, intercontinental airship — the LZ-126 — to satisfy Germany’s requirement to make reparations for the loss of several German zeppelins which had been destroyed by their own crews to prevent them from being handed over to the Allies.
While the American’s were anxious to receive a new ship built by the experts at the Zeppelin Company (especially after the loss of the British R-38, which would have joined the United States Navy as the ZR-2), the British, who had been bombed by German zeppelins during the war, were opposed to the construction of a new zeppelin. Ultimately, a compromise was reached, under which the Zeppelin Company was allowed to build a new ship for the Ameicans on the condition that it be designed and used solely for civil, and not military, purposes.
German Zeppelin Company crew of LZ-126 / ZR-III. October, 1924.
German Zeppelin Company crew of LZ-126 / ZR-III. October, 1924.
The construction of LZ-126 kept the German airship industry alive, maintaining not only the Zeppelin Company’s plant and equipment, but also its workforce of its highly skilled employees. The construction and operation of the world’s first truly intercontinental airship also provided Eckener and his colleagues with the knowledge that would enable them to build and fly future passenger zeppelins.
Flight Across the Atlantic

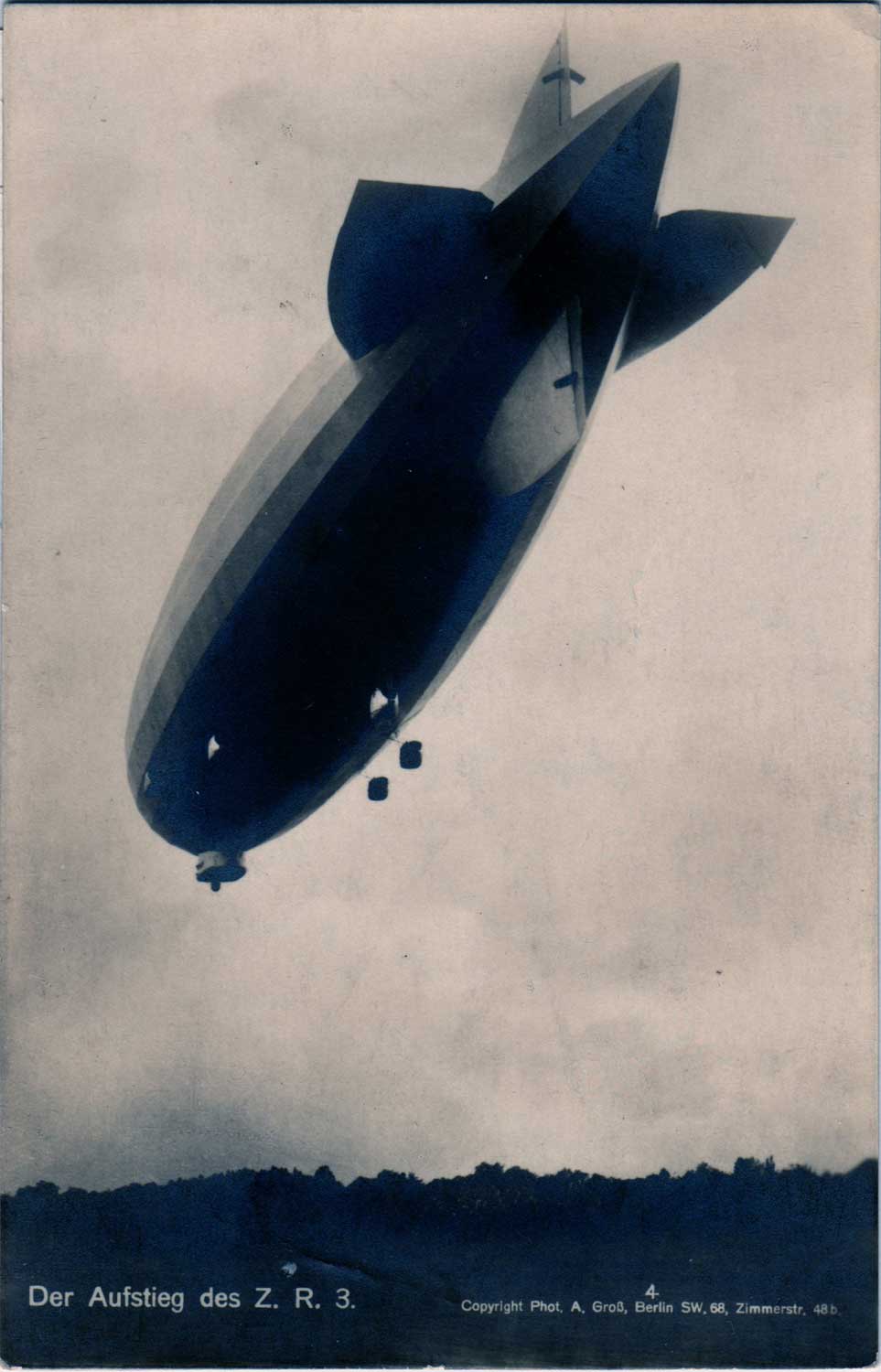

Lift Off of LZ-126 / ZR-3
On October 12, 1924, under the command of Dr. Eckener, LZ-126 (already known by its American naval designation ZR-3) lifted off from Friedrichshafen, Germany to begin its flight across the Atlantic for delivery to the United States Navy.
After a successful crossing of the Atlantic ocean, LZ-126 landed at the United States naval base at Lakehurst, New Jersey at 9:56 AM on the morning of October 15, 1924. The Atlantic would not be crossed nonstop by air again until Charles Lindbergh’s flight in the Spirit of St. Louis in May, 1927.
The transatlantic was considered an aviation triumph, and Captain Eckener and his crew were given a parade up Broadway in New York City, and were greeted at the White House by U.S. President Calvin Coolidge.

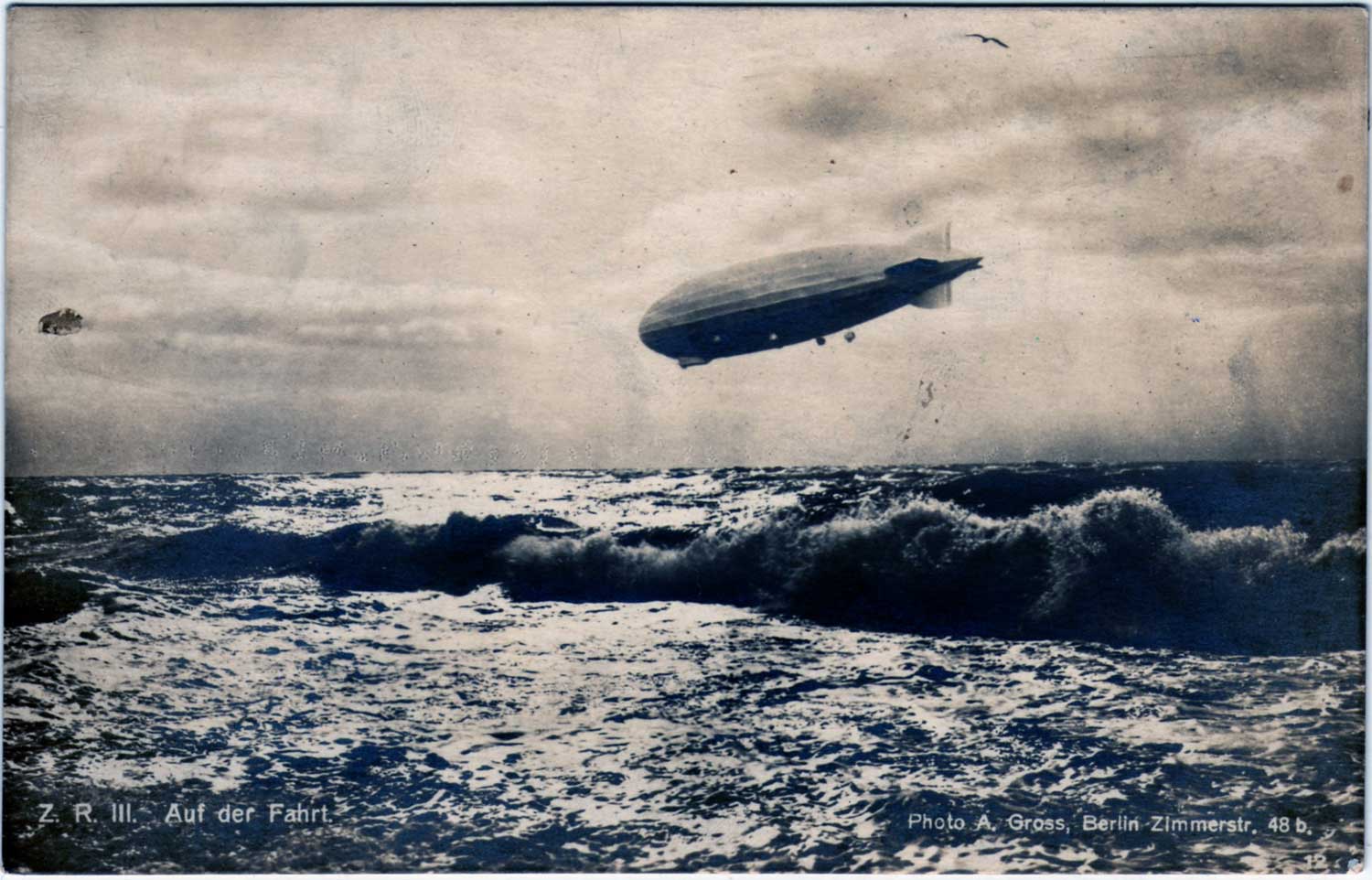

LZ-126 crossing the Atlantic on its delivery flight to the United States Navy
The USS Los Angeles
USS Los Angeles in the hangar at NAS Lakehurst
The first flight of the ZR-3 under American command had to await the return of USS Shenandoah, which was still on its cross country flight.
The United States did not have a sufficient supply of helium to inflate two large airships, and so the ZR-3 — which had arrived from Germany inflated with hydrogen — could not be flown until the helium in Shenandoah’s gas cells could be transfered to the new ship.

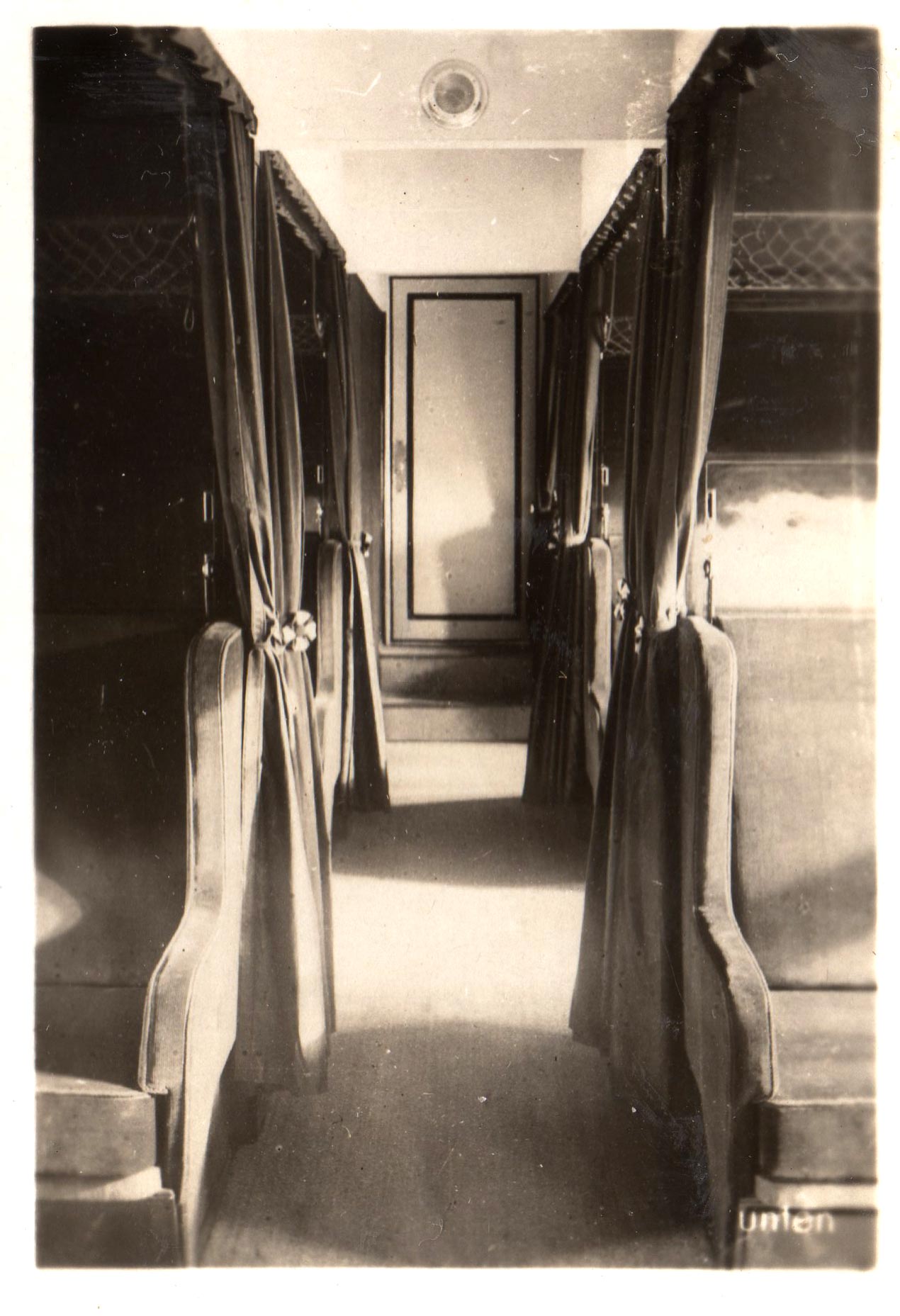

Passenger Cabin of LZ-126
The still un-named ZR-3 made its first American flight on November 25, 1924. The ship was flown to Naval Air Station Anacostia, near Washington, DC, where it was Los Angeles by the wife of President Calvin Coolidge and placed in commission as a vessel of the United States Navy.
Since Los Angeles had been designed under an agreement limiting the ship to civilian use, it had been built with accommodations appropriate to a long-distance commercial airliner, including a large passenger cabin featuring sleeping compartments and a first-class galley for the preparation of hot meals.

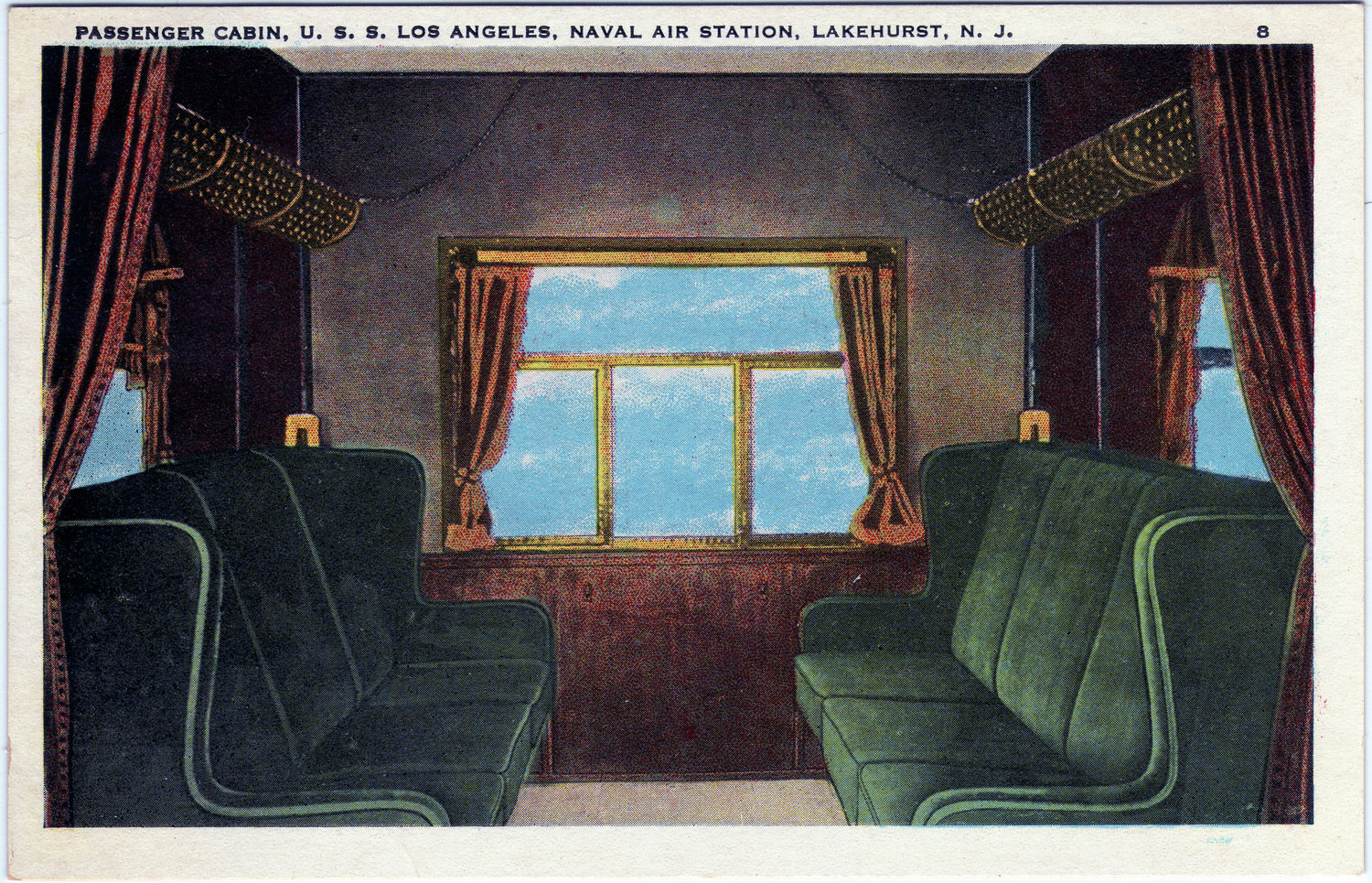

Passenger Cabin of USS Los Angeles

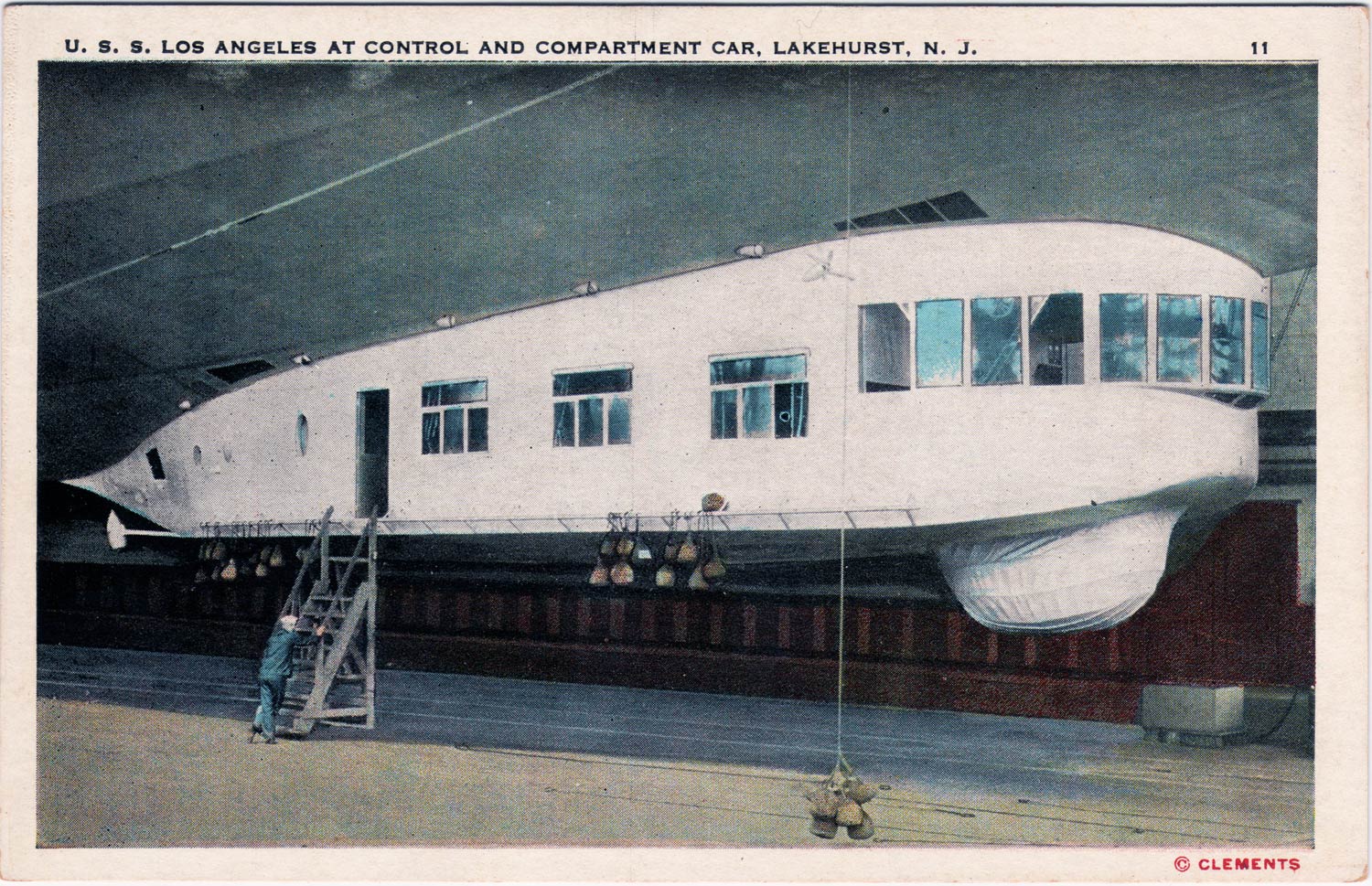

Gondola of USS Los Angeles
Consistent with its agreement to use the ship for civilian purposes, the Navy operated Los Angeles as a training ship, but it conducted operations which clearly related to the needs of a naval vessel, including mooring to a seagoing support ship, the USS Patoka (a Navy oil tanker which had been converted to act as an airship tender), for underway replenishment, and experiments with the retrieval and launching of fixed-wing aircraft by means of a trapeze fitted to the the bottom of the airship’s hull.

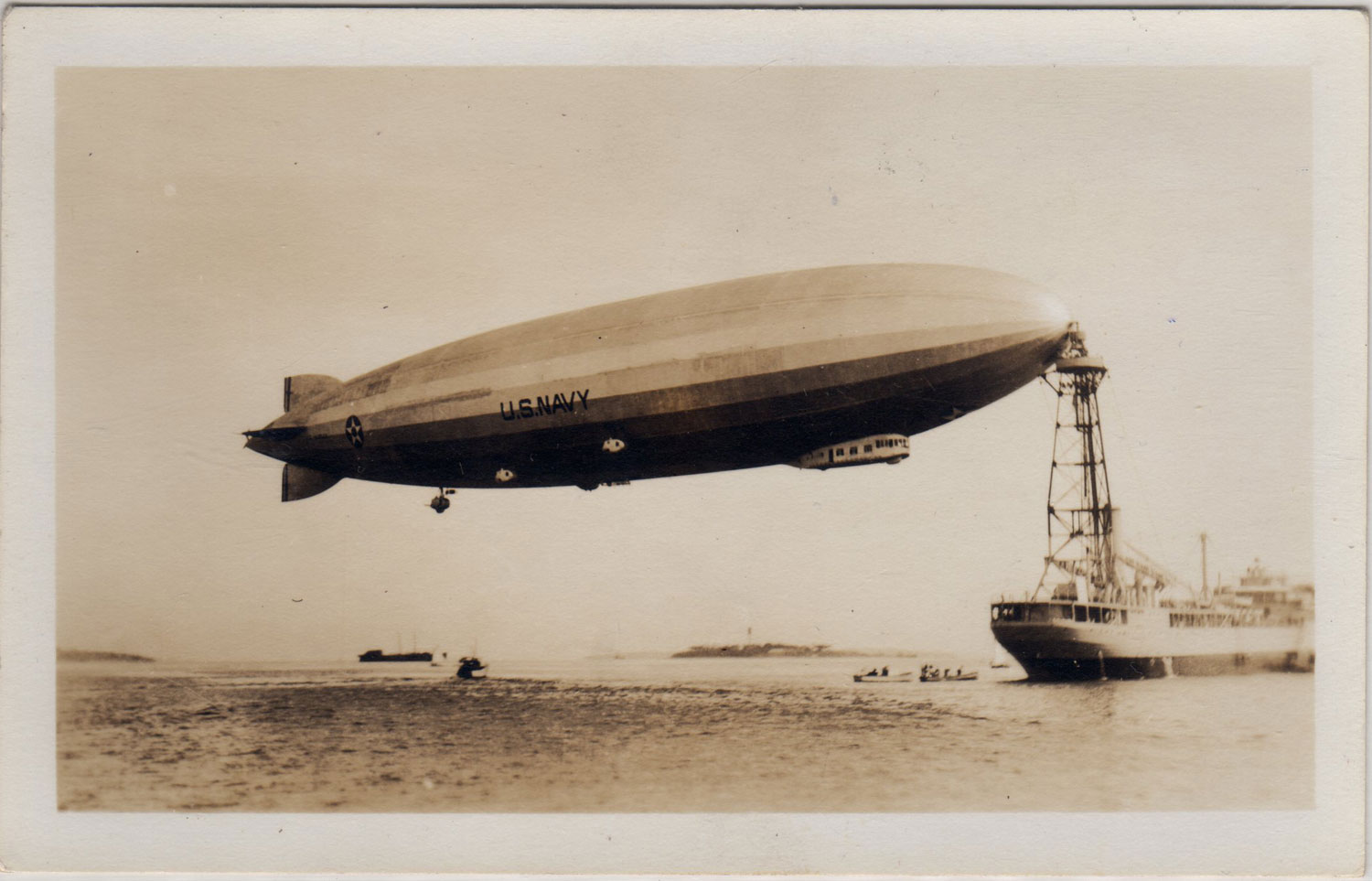

USS Los Angeles moored to USS Patoka
Like the Shenandoah, the Los Angeles also made frequent goodwill and publicity tours around the United States to promote public interest in the Navy’s airship program, and the ship received a great deal of press and public attention.
For a list of crew members who served aboard U.S.S. Los Angeles during 1931-1932, see: U.S.S. Los Angeles: Officers and Crew
This page is under development, and will be updated with additional information about Los Angeles’s technical details and operational history.
For more information, I cannot recommend any resource more highly than William Althoff’s detailed and carefully researched histories:
USS Los Angeles: The Navy’s Venerable Airship and Aviation Technology
Sky Ships: A History of the Airship in the United States Navy

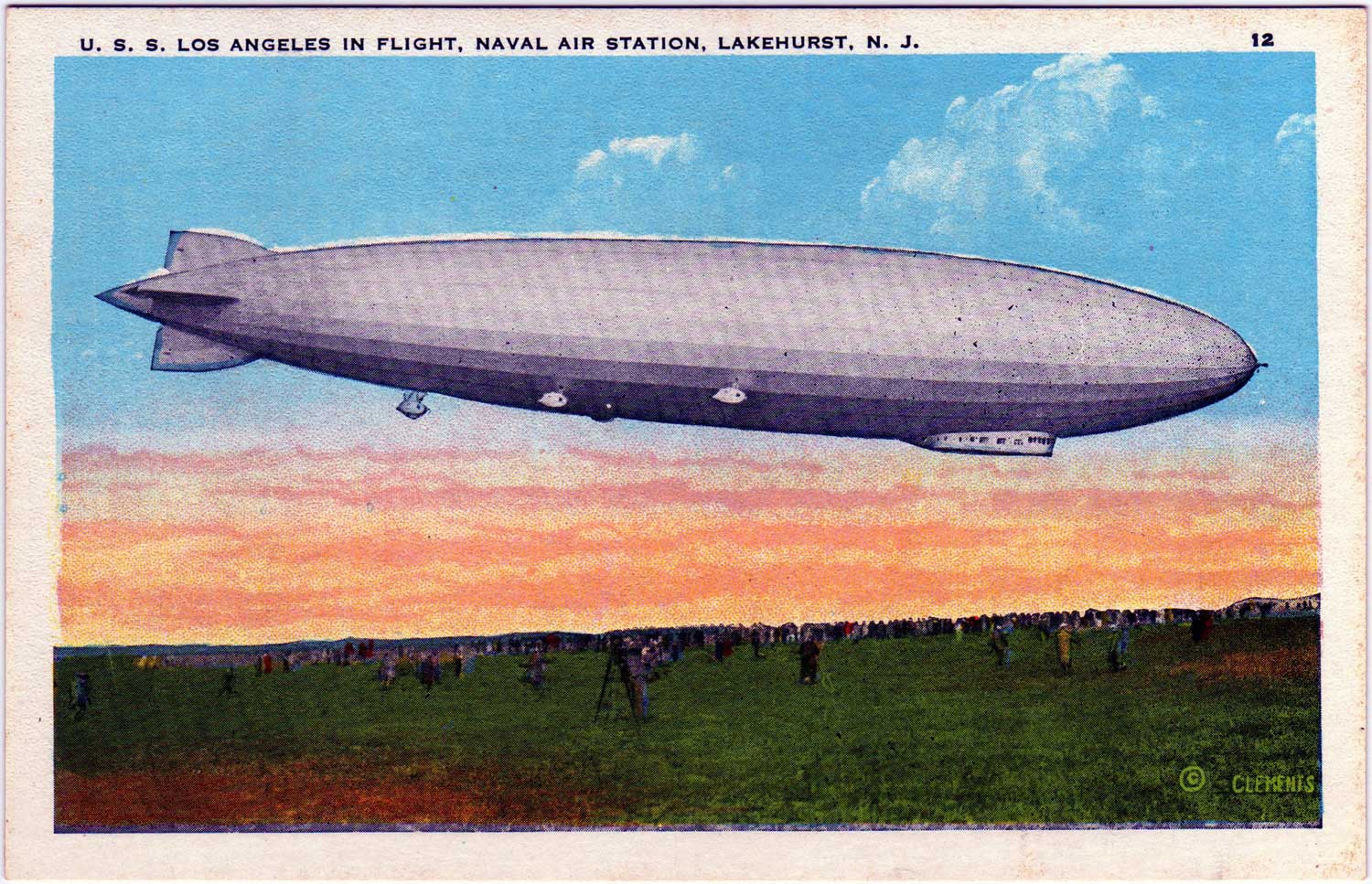

USS Los Angeles over Miami
USS Los Angeles statistics:
- Length: 656.2 feet
- Diameter: 90.68 feet
- Gas capacity: 2,599,110 cubic feet
- Useful lift: 66,970 lbs
- Maximum speed: 79 MPH
- Cruising speed: 50 knotw
- Original Powerplant: 5 Maybach VL-1 12-cylinder engines (400 HP at 1,4000 RPM)
- Flight Crew: 10 officers and 33 men
- First flight: August 27, 1924
- Final flight: June 24-25, 1932
- Total flight hours: 4,181:28
- Total flights: 331
